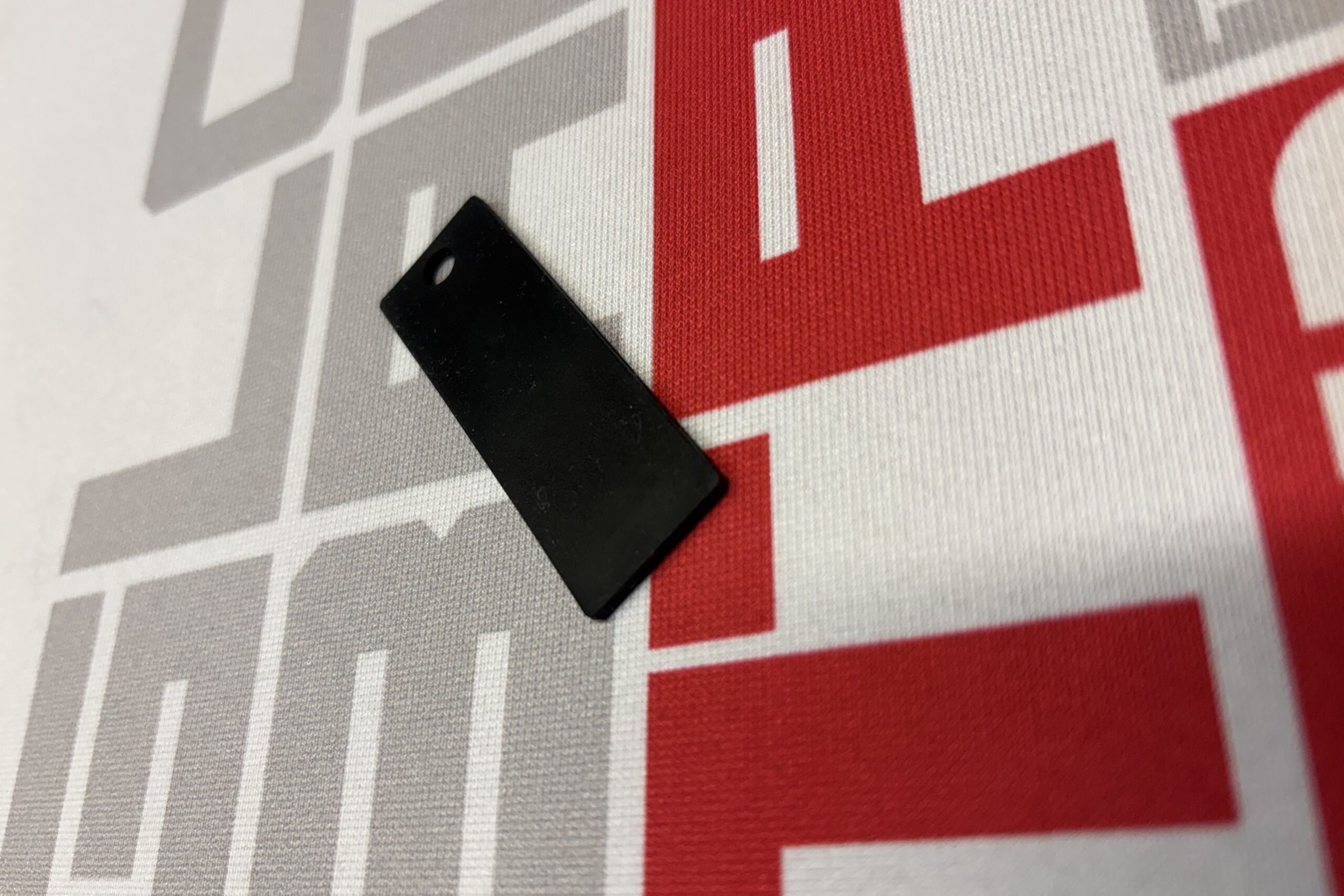

PATCHY Silicone RFID tag with holes
Global Tag PATCHY is a RFID UHF (or, optionally, NFC) silicone tag designed for the object tracking and identification in indoor and outdoor environments.
The main features of this RFID tag are the flexibility, the durability and the high degree of resistance to water and chemicals.
The two side holes make the tag mounting quick and easy.
Patchy is suitable for several projects such as asset management, pallet tracking, identification and maintenance of park public trees.
chemicals
Suitalble for environments with chemicals.
flexible
Silicone material is a soft and flexible material
waterproof
It withstands both splashing and diving
PRINTING
Printable and laserable surface with QRcode, serial and logo.
Specification
Physical Caracteristics
Dimensions: 142x22x2mm (holes 7x4mm)
Mounting System: Rivet Holes (two holes)
Weight: 8gr.
Material: Silicone
Color: White/Grey, other colors as option
Class Protection: Washable resistant
Weather Ability: Very Good, including UV resistance and sea water
Expected lifetime: Years in normal operating conditions
Delivery format: Singulated
Types of RFID chips
HF: Available with I-Code SLIX, I-Code SLIS, Mifare Ultralight, Mifare Classic 1K, Mifare Classic 4K, N-Tag213/216, others on-request
UHF: Available with NXP Ucode8 or Alien Higgs9 chip. Other UHF chip on request
user environment
Storage Temperature: -55°C (for 3h) to +100°C (for 2h) / -67°F (for 3h) to +230°F (for 2h) (for any other particular request contact us)
Operating Temperature: -25°C to +85°C / -13°F to +185°F
Chemical resistance:
No physical or performance changes in (tested up to, more hours can be):
– 200 hours Motor oil immersion
– 200 hours Salt water (salinity 10%) exposure
– 200 hours H2SO4 Sulfuric acid (10% pH 2) exposure
– 24 hours NaOH Caustic Soda (10%, PH 13) exposure
– 24 hours HCl Muriatic Acid (10%) exposure
– 24 hours Na2CO3 Soda Solvay
– 24 hours NH3 Ammoniac (5% to 25%)
Values in the table are the best recommendations; resistance against environmental conditions depends on the combinations of all influencing factors, exposure duration and
chemical concentrations. Thus, product’s final suitability for certain environmental conditions is recommended to be tested. We are available for other information.
Printing and custom options
Silk Printing: 4-colors printing logo
Pre-Encoding: Customer specific encoding of EPC or User Memory (also from Database). Locking permanently or with password. Insert into
Database TID code.
